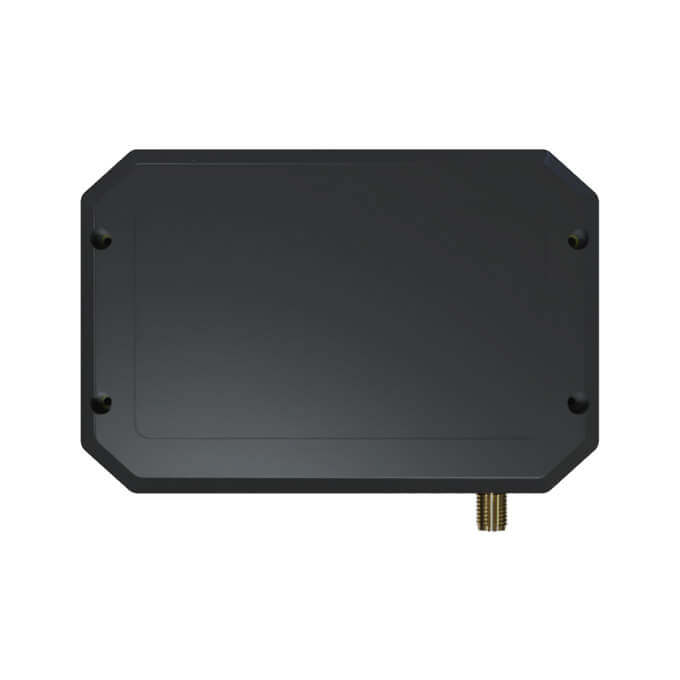

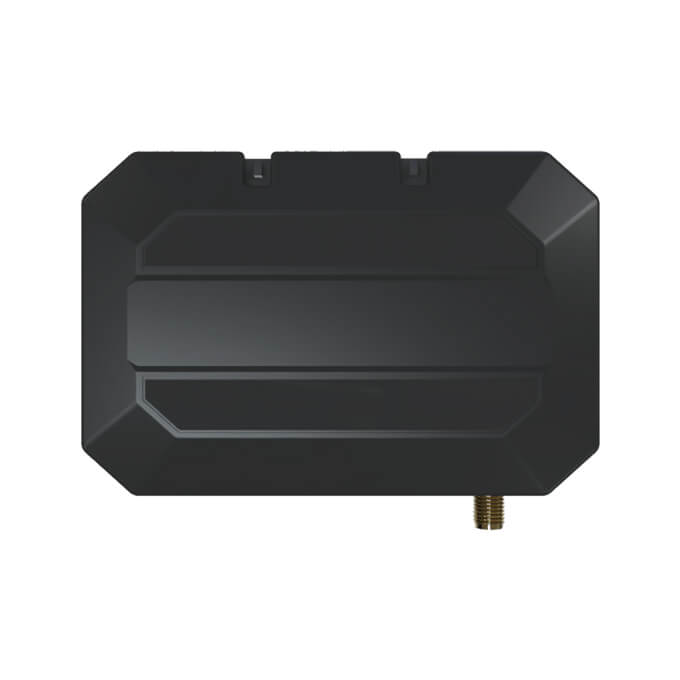

Model: NL01
GNSS vehicle Tracker
NL01 is a versatile GNSS vehicle tracker supporting two hardware versions CAT 1 and CAT M1 & NB-IoT connectivity. It has a 500mAh backup battery, industrial level chipsets and high gain GNSS and LTE antenna for receiving stable network and signal. Moreover, the device gets rich inputs and outputs and they are configurable as per your needs. Two RS232 serials ports will allow to work with RFID Reader for driver management and other important peripherals. Internal Bluetooth will make it possible to connect with BLE temp and humidity sensor and BLE fuel sensor for cold chain trucks solution. It is ideal for various fleet applications including international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.
Product Highlights
Supports Network 4G LTE and 2G
High Accuracy GNSS Dual mode positioning
Multiple configuration I/O Interfaces
Bluetooth 5.0 Supported
Driving Behavior Monitoring
Fuel Level Monitoring
Flexible Geofences Settings
Firmware Update OTA
Internal Backup Battery
Multiple Alerts Supported
Integrated with FMS Platforms
CAN FMS J1939
PC Configurator
Connectivity IO Setup Events Setup ECO-Driving Geofences Firmware Upgrade ...
Supported Worldwide FMS Platforms Integration
Open Protocol
SMS Protocol GPRS Protocol USB Protocol MQTT Protocol Accessible for integration ...
Geofence
128 Geofences, Circle and Polygon ...
Driving Behaviors Analysis
Harsh acceleration Harsh braking Sharp cornering Overspeed Idling Crashing ...
Alarm Notification
Enter or Exit Geofence Full or Low Fuel External Power Supply Power on/Reboot Fuel Sensor falling off Rollover Alert ...
Sleep Mode
Smart sleep model Deep sleep mode ...
Reports
Events Report I/O Report Historical Report Mileage Report Sensor Report Trip Report ...
Product Specifications
Case Material ABS + PC
Dimension 99* 66 * 19mm
Weight 103g
Power Cable Length 1 meter
Working Temperature -20 ~ 80°C(without Battery)
Working Humidity 0~99%
Power Supply DC 10V-90V/1A
Power Consumption 60mA / 12V
LED indicators GSM(Green) GNSS(Blue)
Internal Backup battery 3.7V, 500mAh
SIM Card Type Nano SIM
Internal Memory 64Mbit
Accelerometer 3-axis
Bluetooth technology BLE 5.0
GNSS
GNSS antenna
External GNSS Antena, Built-in GNSS Antena (optional)
Positioning system
GPS+Glonass, GPS+Beidou, GPS+Beidou+Glonass
Positioning Accuracy
< 2.5m CEP
Receiver
GPS, GLONASS, BEIDOU, QZSS
Tracking Sensitivity
-162dBm
Acquisition Sensitivity
-147dBm
Hot start
2s
Warm start
30s
Cold start
32s
Cellular
Communication Mode
UDP/TCP/SMS/MQTT/FTP
Cellular antenna
Built-in LTE Antena
Supported Regions
Global(CAT M1), Europe, Latin America
SMS Protocol
Supported
Data transfer
CAT1 MAX: 5Mbps(UL), 10Mbps(DL) CAT M1 MAX: 1.12Mbps(UL), 589Kbps(DL) EGPRS: 85.6Kbps
Frequency Bands
Europe
Module
CAT1
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
GSM
B2, B3, B5, B8
Frequency Bands
Latin America
Module
CAT1
LTE-FDD
B2, B3, B4, B5, B7, B8, B28, B66
GSM
B2, B3, B5, B8
Frequency Bands
Global
Module
CAT M1/CAT NB2
LTE-FDD
B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85
GSM
B2, B3, B5, B8
I/O Interfaces
USB2.0
2.0 Micro-USB for configurtions, debug and FW Upgrade
Digital Inputs
7 x Digital inputs(configurable), Voltage range: 0-30V
Digital Outputs
7 x Digital outputs(configurable), Open Collector, Maximum controllable current: 500mA
Analog Inputs
7 x Analogl intputs(configurable), Voltage range: 0-30V
One-Wire Interface
1 x One-Wire(configurable)
RS232 interface
2 xRS232
RS485 Interface
1 x RS485 or CAN
CAN J1339
1 x CAN or RS485
Audio
CAT1 supported CAT M1 not supported

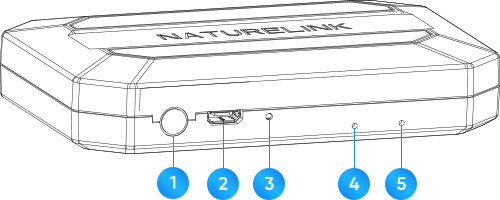

Product Diagram

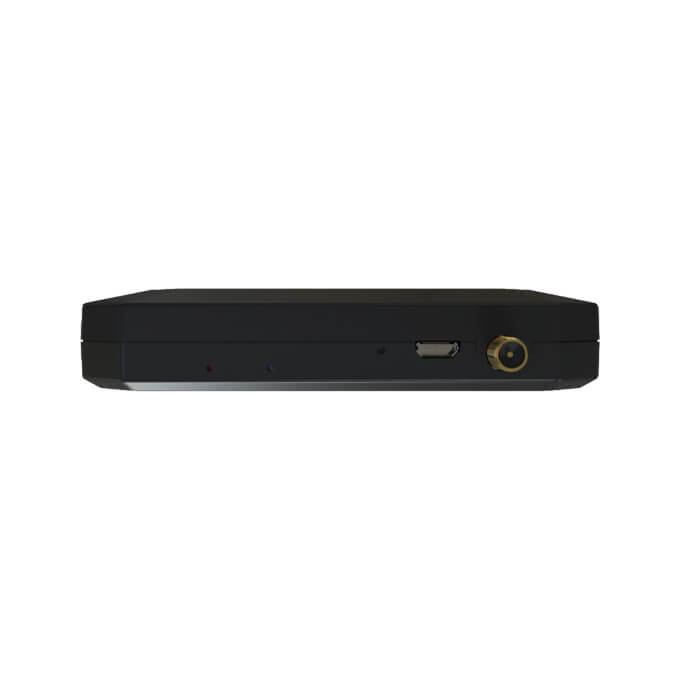

- 1. GNSS Antenna
- 2. Micro USB
- 3. Power Key
- 4. LED Indicators GSM (Green)
- 5. LED Indicators GNSS (Blue)

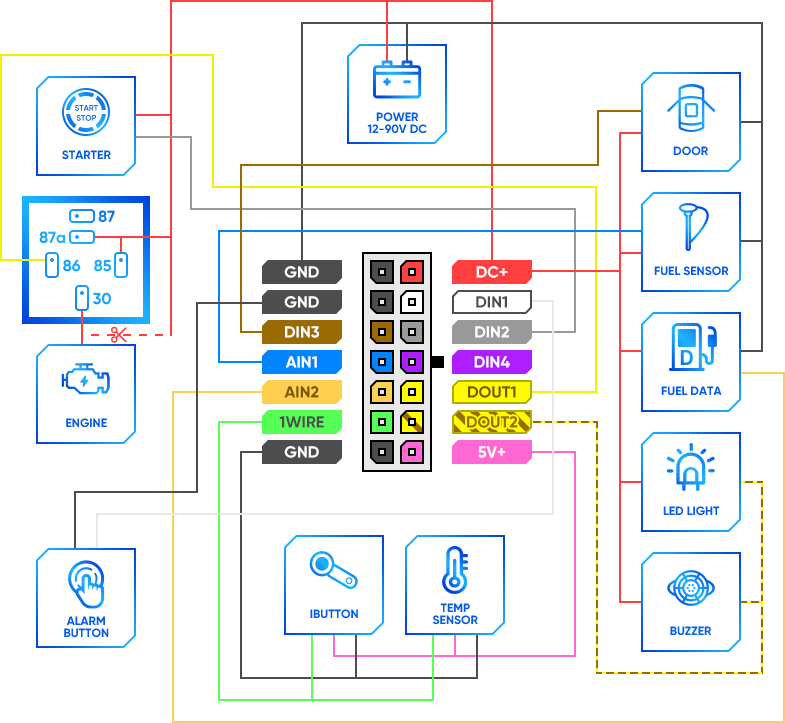

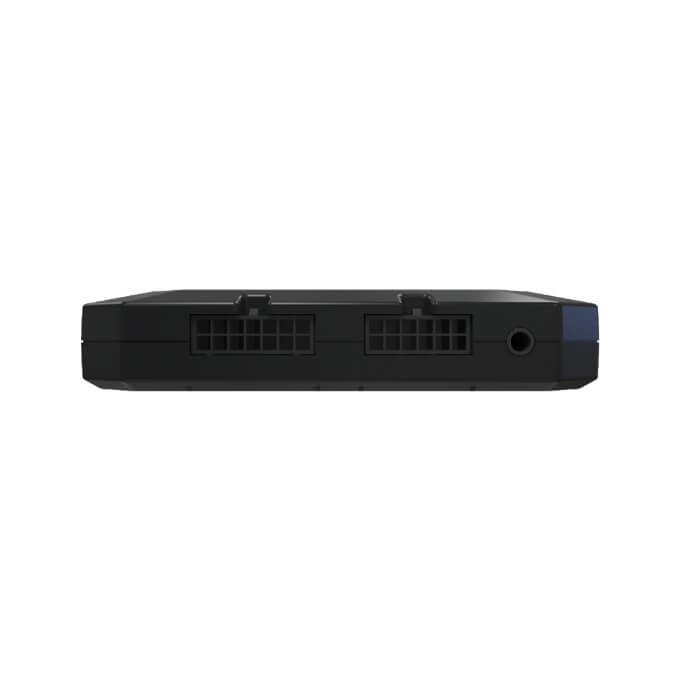

- 6. 14 PIN Port

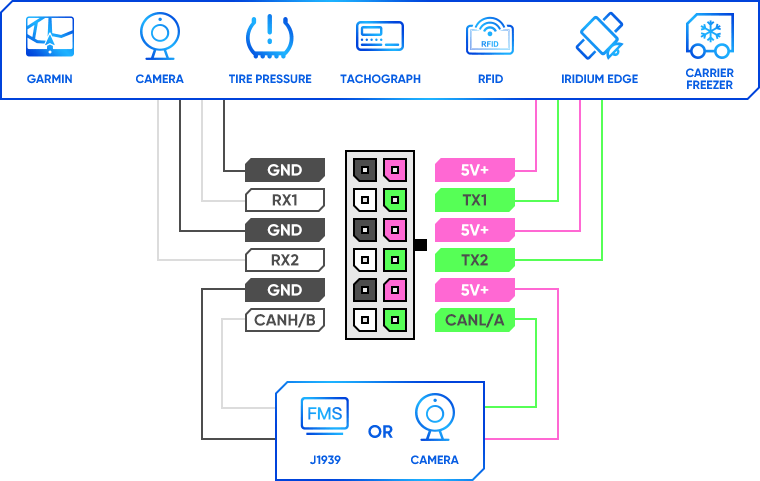

- 7. 12 PIN Port
- 8. Audio Port
Optional Peripherals
12V/24V Relay(immobilizer)
Supported, for shutting down the fuel pump or engine remotely.
RFID Reader
Supported, for driver authorization and attendance management.
iButton Reader
Supported, for driver authorization and attendance management.
Magnetic Card Reader
Supported, for driver authorization and attendance management.(Thailand DLT Project)
Camera
Supported, for taking snaptshots by events triggered.
Fuel Sensor
Supported, real-time fuel data, high fuel alert, low fuel alert, fuel theft alert.
Microphone and Speaker
Supported, (CAT 1 Version) for two-way communication.
Buzzer
Supported, for alerting driver in case of overspeeding or other preset scenarios.
Panic Button
Supported, for emergence events.
Axle load sensor
Supported, for monitoring cargo load weight and preventing axle overload.
Bluetooth Sensors
Temperature and humidity sensor, BLE Beacon, BLE fuel sensor.
Rotating Magnetic Sensor
Supported, for monitoring the rotation direction and speed of the ReadyMix drum.
