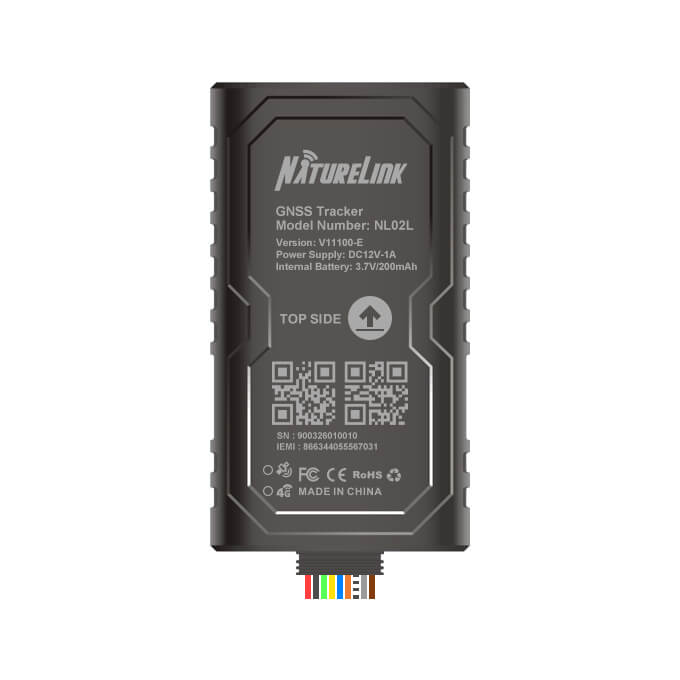

Model: NL02L
GNSS Vehicle Tracker
Nl02L is a cost-effective IP67 waterproof and dustproof 4G LTE CAT 1 GNSS Vehicle Tracker with Bluetooth 5.0 connectivity, internal backup battery, high-gain built-in GNSS and GSM antennas. It's small and smart, compact, reliable and perfectly ideal for basic track & trace and fleet management supporting BLE sensors and Analog sensors. This product has simple configurable I/O ports allowing for ignition detection, remote safe fuel cut-off, as well as equipped with 3-axis accelerometer for detecting driving behaviors events. It can be perfectly depolyed to a wide range of vehicle tracking applications like Car Rental and Leasing, Stolen Vehicle Recovery, Delivery & Courier, Logistics and Insurance Telematics.
Product Highlights
Cost-Effective
IP67 Waterproof
Easy and fast installation
Small, Smart, Accurate, Reliable
Wide Voltage Power supply
Bluetooth 5.0 connectivity
Driving Behavior Monitoring
Compact and Robust
Multiple Alerts Supported
Integrated with FMS Platforms
Configurator
PC Configurator SMS commands Web(under development) APP(under development) ...
Supported Worldwide FMS Platforms Integration
GPRS Protocol
Accessible for integration ...
Geofence
128 Geofences, Circle and Polygon ...
Driving Behaviors Analysis
Harsh acceleration Harsh braking Sharp cornering Overspeed Idling Crashing ...
Alarm Notification
Enter or Exit Geofence Full or Low Fuel External Power Supply Power on/Reboot Fuel Sensor falling off Rollover Alert ...
Sleep Mode
Smart sleep model Deep sleep mode ...
Reports
Trip Report ...
Product Specifications
Case Material PC
Dimension 80*44*14mm
Weight 70g
Power Cable Length 1 meter
Working Temperature -20 ~ 80°C(without Battery)
Working Humidity 0~99%
Power Supply DC 10V-90V/1A
Power Consumption 60mA / 12V
LED indicators GSM(Green) GNSS(Blue)
Internal Backup battery 3.7V, 200mAh
SIM Card Type Nano SIM
Internal Memory 64Mbit
Accelerometer 3-axis
Ingress protection IP67
Bluetooth technology BLE 5.0
GNSS
GNSS antenna
Built-in GNSS Antena
Positioning system
GPS+Glonass, GPS+Beidou, GPS+Beidou+Glonass
Positioning Accuracy
< 2.5m CEP
Receiver
GPS, GLONASS, BEIDOU, QZSS
Tracking Sensitivity
-162dBm
Acquisition Sensitivity
-147dBm
Hot start
2s
Warm start
30s
Cold start
32s
Cellular
Communication Mode
UDP/TCP/SMS/MQTT/FTP
Cellular antenna
Built-in LTE Antena
Supported Regions
Global(CAT M1), Europe, Latin America
SMS Protocol
Supported
Data transfer
CAT1 MAX: 5Mbps(UL), 10Mbps(DL) CAT M1 MAX: 1.12Mbps(UL), 589Kbps(DL) EGPRS: 85.6Kbps
Frequency Bands
CN Version
LTE-FDD
B1, B3, B5, B8
LTE-TDD
B34, B38, B39, B40, B41
I/O Interfaces
USB2.0
2.0 Micro-USB for configurtions, debug and FW Upgrade
Digital Inputs
6 x Digital inputs(configurable), Voltage range: 0-30V
Digital Outputs
2 x Digital outputs(configurable), Open Collector, Maximum controllable current: 500mA
Analog Inputs
4 x Analogl intputs(configurable), Voltage range: 0-30V (Lite version support 1)
One-Wire Interface
1 x One-Wire(configurable)
RS232 interface
1 xRS232
Product Diagram
1. LED Indicators GNSS (Blue)
2. LED Indicators GSM (Green)
3. I/O Cable
I/O Connector
Optional Peripherals
12V/24V Relay(immobilizer)
For shutting down the fuel pump or engine remotely.
iButton Reader
For driver authorization and attendance management.
Fuel Sensor
Real-time fuel data, high fuel alert, low fuel alert, fuel theft alert.
Buzzer
For alerting driver in case of overspeeding or other preset scenarios.
Panic Button
For emergence events.
Bluetooth Sensors
Temperature and humidity sensor, BLE Beacon, BLE fuel sensor.
Rotating Magnetic Sensor
For monitoring the rotation direction and speed of the ReadyMix drum.
