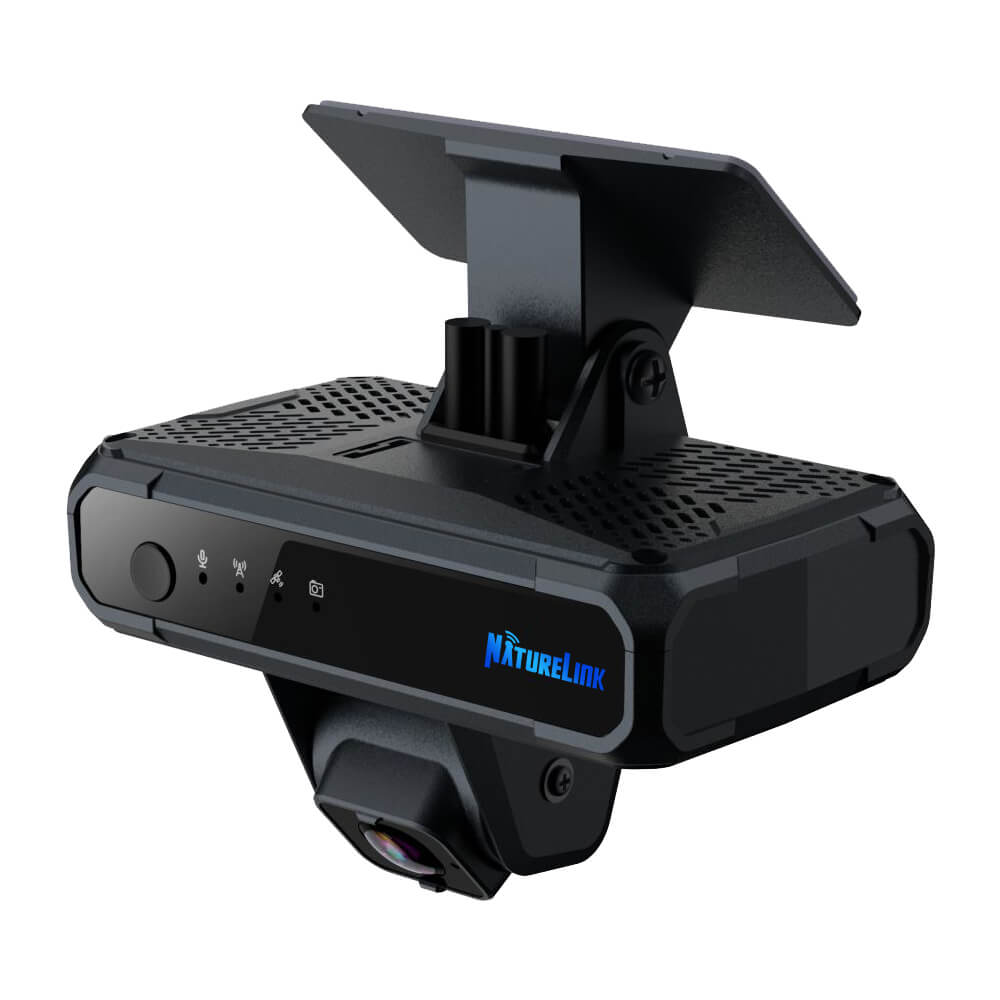

Model: NL16
High-End AI Dashcam
NL16 represents the Next Generation AI Dashcam! Naturelink NL16 is a high-end AI Dashcam with integrated HD video recording. The device adopts front and rear dual-Lens itself and can be extended to two additional AHD cameras. It supports built-in DMS active safety to monitor driving behaviors as well as built-in ADAS to provide Advanced Driving Assistance System. This product is developed to minimum reduce to block driver's view and make it easier for configuration and quick installation. Fleet Owners will be able to coarch their drivers via GSM call and it is applicable to different industries and various types of vehicles.
Product Highlights
All-In-One Extended to max 4CH
Advance AI DMS + ADAS + BSD
Accurate detection 6-axis G-sensor
GSM/VoLTE Call
Compact Size Light Weight
Quick Installation Easy for Configuration
Reduce blocking Driver's view
Applicable to Different Types Vehicles
Configurator
Mobile APP, SMS Commands, Web Interface, CMSV6 Platform
Firmware Upgrade
Local: TF Card, Remote OTA via platform.
FMS Platforms
Supported CMSV6, Wialon, Uffizio
GPRS Protocol
Supported JT808, JT1078
Driving Behaviors
Yawning, Eye Closing, Smoking, Lane Departure, Headway Monitoring, ...
Powerful AI Alarm Function
Equipped with advanced AI technology, this device accurately recognizes various behaviors. It gently reminds you to rest when you're eye-closing or yawning. If you're distracted while driving, it immediately issues a warning to ensure safety. Detecting smoking or phone calling, it intelligently discourages these actions, maintaining a healthy driving environment. With a thoughtful seatbelt detection feature, it ensures safety belts are worn for every trip. AI empowerment makes driving more reassuring and life better.
Yawning
Eye Closing
Phone Calling
Driver Abnormal
Camera Covering
Smoking
Face Recognition
Distraction
Seatbelt
Equipped with cutting-edge AI technology, it comprehensively safeguards your driving safety. Intelligent monitoring of vehicle distance to prevent rear end collisions, Early warning of collision risks ahead, allowing drivers to feel more at ease, Real time monitoring of lane departure to ensure driving trajectory, Accurately identify pedestrians and effectively avoid collision accidents.
Headway Monitoring Warning
Forward Collision Warning
Lane Departure Warning
Pedestrian Collision Warning
Blind Spot Detection Alarm
Traffic Sign No Parking
Traffic Sign Speed Limit
Product Specifications
Linux Operating System
Dimension 111.9 x 67.4 x 32.9mm
Weight 350g
Power Supply DC 9V~36V
Working Temperature -20℃~70℃
4G Quectel EC200A-AU/EU
GNSS GPS + BD
WIFI Station and AP mode, 802.11b/g/n
Antenna Built-in GNSS and 4G Antenna
Video formats PAL / NTSC
Video compression H.264 / H.265
Video Resolution 1080P / 720P / D1 / CIF
Audio formats G.711A / G711U / G726 / AMR
Storage Capacity 2 x 512GB TF cards(Industrial-Level)
Front View Lens Starlight, WDR, Built-in ADAS, 1080P
In-Cab View Lens 2 million IR-CUT infrared wide Angle, 720P
External Cameras Extended to 1 x AHD Cameras(720P)
Video Output 1 x Video Output
Indicators 3 LED Indicators
Speaker and Microphone Built-in
OBD Power Supply Supported
G-Sensor 6-axis G-sensor
4G
Quectel EC200A-EU
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
LTE-TDD
B38, B40, B41
4G
Quectel EC200A-AU
WCDMA
B1, B2, B4, B5, B8
GSM/EDGE
B2, B3, B5, B8
LTE-FDD
B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD
B40
Front View Lens(ADAS)
FOV
HFOV: 106°, VFOV: 77°, DFOV: 139°
Resolution
1920*1080
Frame rate
1080P 25fps
In-cab Lens
FOV
HFOV: 152°, VFOV: 84°, DFOV: 180°
Resolution
1920*1080
Frame rate
1080P 25fps
GPIO & Interfaces
Alarm Inputs
6 (ACC, Panic, left and right turn)
RS232
1
TF Card
2
Sim Card
1
CAN
1
Output
1
OBD Power Supply
1
Product Diagram
Applications
Trucks System Diagram
Detects fatigue, distraction, or speeding and alerts drivers to stay focused.
Offers live updates on truck locations, aiding logistics planning.
Promotes safe driving, reducing accident risks.
Tracks goods in transit to prevent theft, tampering, or damage.
Provides video evidence to resolve complaints efficiently.
Delivery Van System Diagram
Monitors vehicle locations to improve route planning and delivery efficiency.
Identifies delays and suggests faster alternatives for timely deliveries.
Detects unsafe behaviors and provides instant feedback to ensure safe driving.
Records events for resolving disputes or insurance claims.
Confirms safe package handling and prevents claims of lost or damaged goods.

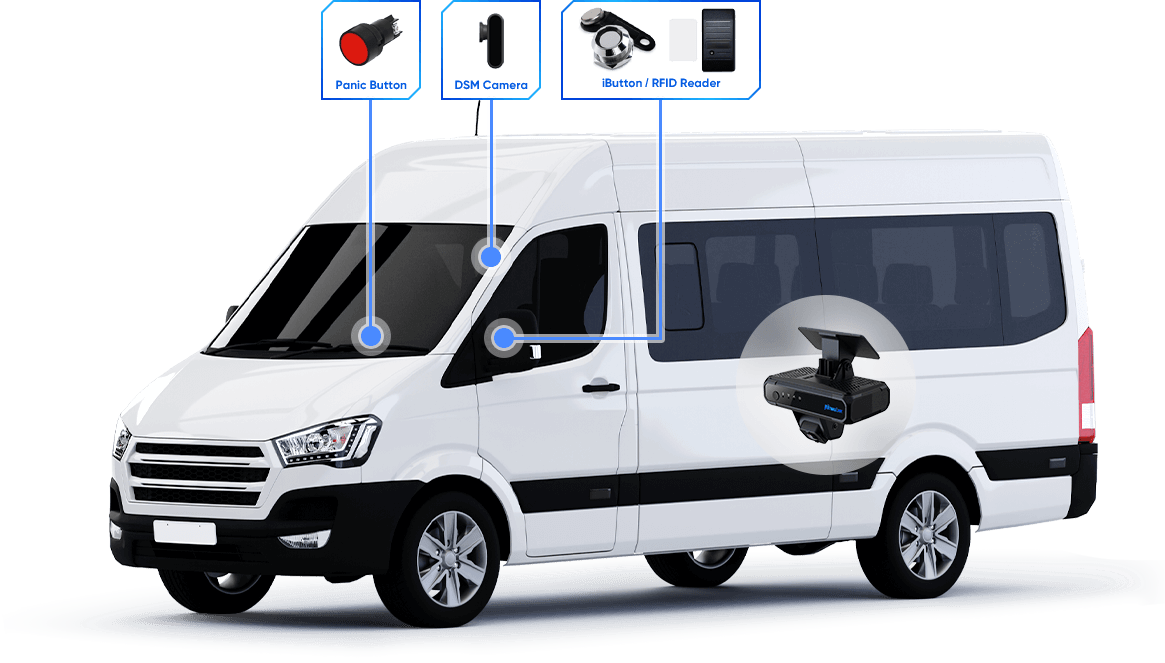

Mini Bus System Diagram
Provide useful information for Mini Bus fleet dispatch.
Driver Fatigue Monitoring and provide timely warning.
Save critical Video footages for evidence query.
Improve safety and security for minibus, and passengers.
Driver attendance is managed and KPI assessment is accessible with reports.
Standard Peripherals
Power Cable
For connecting with external power supply.
Panic Button
For emergence events.
Extension Cable
For power cable extension to facilitate installation.
Camera Extension Cable
For connecting with external cameras and monitor.
Wrench
For unscrewing and screwing the SIM cover.
Optional Peripherals
DMS Camera
For detecting driver behaviors and recording event-based video clips and snapshots.
AHD Camera
For video monitoring and taking snapshots.
External Monitor
For displaying real-time video footages and messages.
OBD Connector Cable
For getting power supply via OBD port.
