Model: NL05
GNSS Vehicle Tracker
NL05 is a compact and intelligent 4G GNSS tracker designed for vehicle tracking and proactive security. With Dual SIM support and robust 4G connectivity, it ensures continuous communication in all conditions. Advanced safety features including Hijack Detection, Vehicle Theft Detection, Tampering Alerts, and GSM-Jamming Detection makes it perfect for Stolen Vehicle Recovery Application. The device supports Remote Safe Fuel Cut-off and integrates with a Wireless BLE Relay for remote immobilization. Compatible with BLE iBeacon and BLE Fuel Sensors, the NL05 enables precise driver identification and real-time fuel monitoring. A built-in 400mAh backup battery ensures uninterrupted protection even during power loss.
Product Highlights
4G and fallback to 2G
Hijack Detection
Dual SIM Card
Remote Immobilizer
400mAh Backup Battery
BLE Tag for Driver ID
GSM-Jamming Detection
Instant Tampering Alert
Fuel Level Monitoring
Vehicle Theft Detection
Configurator
OTA, PC Configurator SMS commands Web(under development) APP(under development) ...
Supported Worldwide FMS Platforms Integration
GPRS Protocol
Accessible for integration ...
Geofence
128 Geofences, Circle and Polygon ...
Driving Behaviors Analysis
Harsh acceleration Harsh braking Sharp cornering Overspeed Idling Crashing ...
Alarm Notification
Enter or Exit Geofence Full or Low Fuel External Power Supply Power on/Reboot Fuel Sensor falling off Rollover Alert ...
Sleep Mode
Smart sleep model Deep sleep mode ...
Reports
Trip Report ...
Product Specifications
Case Material PC
Dimension 84.5*44*14.5mm
Weight 62g
Power Cable Length 1 meter
Working Temperature -20 ~ 80°C(without Battery)
Working Humidity 0~99%
Power Supply DC 10V-90V/1A
Power Consumption 60mA / 12V
LED indicators GSM(Green) GNSS(Blue)
Internal Backup battery 3.7V, 400mAh
SIM Card Type Nano SIM
Internal Memory 64Mbit
Accelerometer 3-axis
Ingress protection IP54
Bluetooth technology BLE 5.0
GNSS
GNSS antenna
External GNSS Antena
Positioning system
GPS+Beidou+QZSS(by default), GPS+Glonass+QZSS
Positioning Accuracy
< 2.5m CEP
Receiver
GPS, GLONASS, BEIDOU, QZSS
Tracking Sensitivity
-162dBm
Acquisition Sensitivity
-147dBm
Hot start
2s
Warm start
30s
Cold start
32s
Cellular
Communication Mode
UDP/TCP/SMS/MQTT
Cellular antenna
Built-in LTE Antena
Supported Regions
Global(CAT M1), Europe, Latin America
SMS Protocol
Supported
Data transfer
CAT1 MAX: 5Mbps(UL), 10Mbps(DL) CAT M1 MAX: 1.12Mbps(UL), 589Kbps(DL) EGPRS: 85.6Kbps
Bluetooth technology
BLE 5.0
Frequency Bands
EU Version
Module
CAT 1
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
GSM
B2, B3, B5, B8
Frequency Bands
LA Version
Module
CAT 1
LTE-FDD
B2, B3, B4, B5, B7, B8, B28, B66
GSM
B2, B3, B5, B8
Frequency Bands
Global
Module
CAT M1 / CAT NB2
LTE-FDD (CAT M1 only)
B14, B27
LTE-FDD (CAT NB2 only)
B71
LTE-FDD
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B85
EGPRS
B2, B3, B5, B8
I/O Interfaces
USB2.0
For configurtions, debug and FW Upgrade
Digital Inputs
6 x Digital inputs(configurable), Voltage range: 0-30V
Digital Outputs
2 x Digital outputs(configurable), Open Collector, Maximum controllable current: 500mA
Analog Inputs
4 x Analogl intputs(configurable), Voltage range: 0-30V
One-Wire Interface
1 x One-Wire(configurable)
LDR Sensor
LDR sensor built into the casing to detect light and trigger Output and SMS
Dual-SIM
Supported

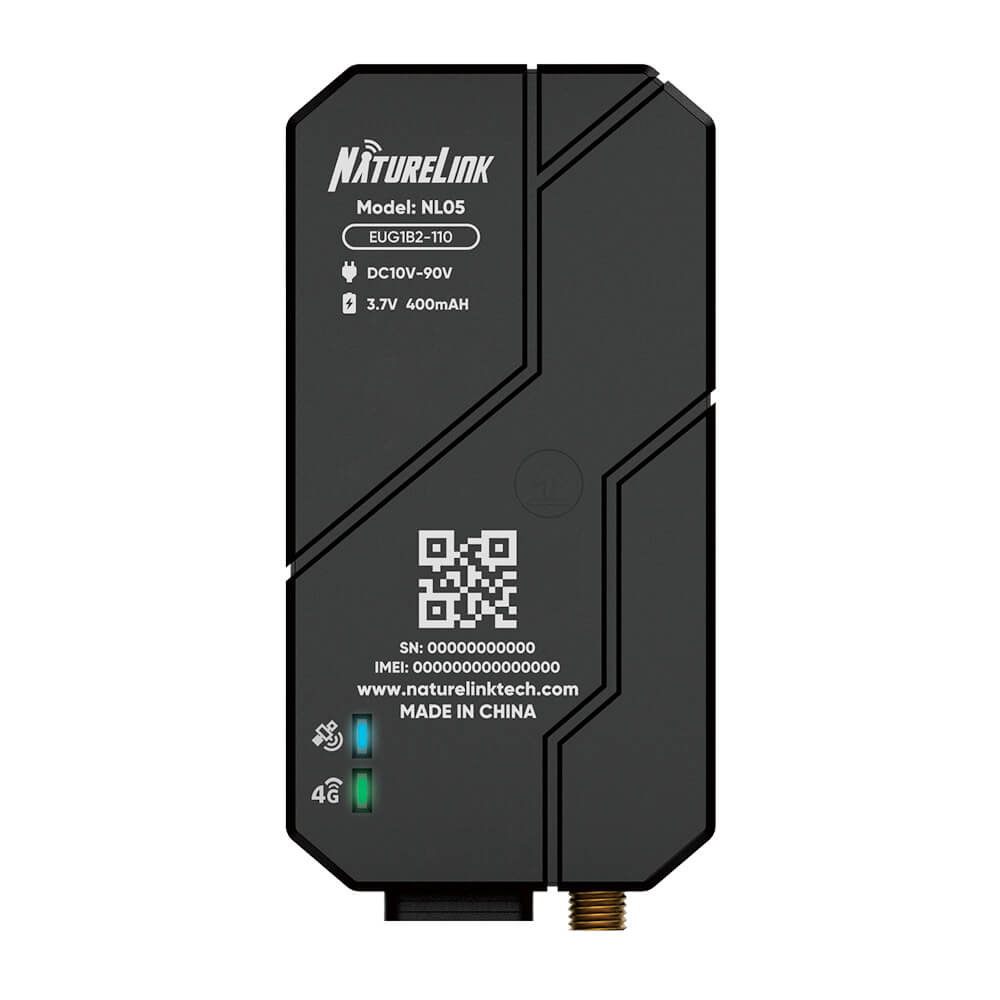

Product Diagram
1. LED Indicators GNSS (Blue)
2. LED Indicators GSM (Green)
3. I/O Cable
4. GNSS Antenna

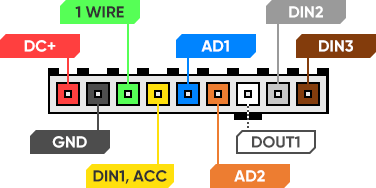

I/O Connector
Applications

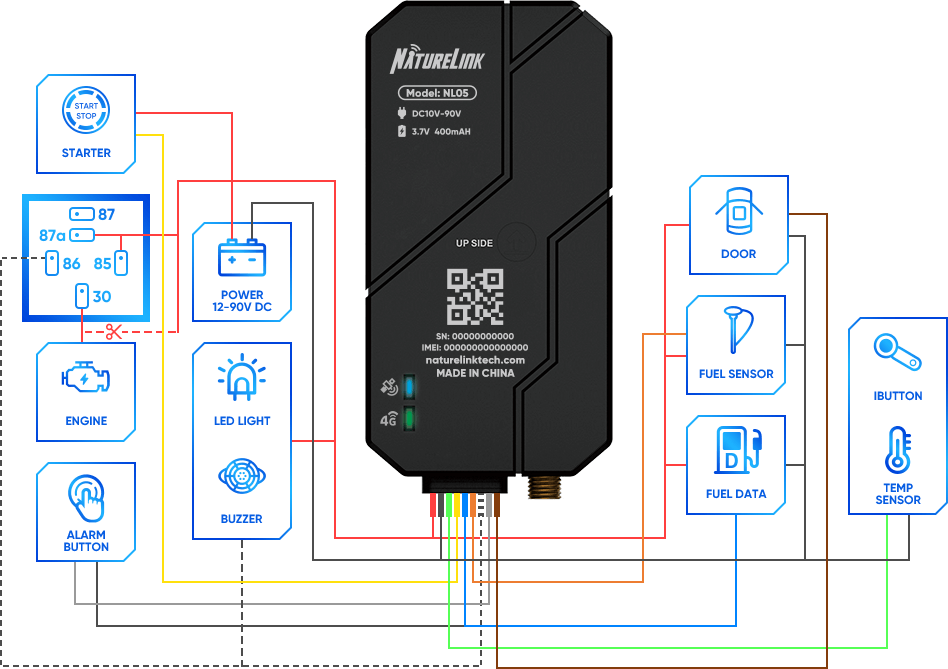

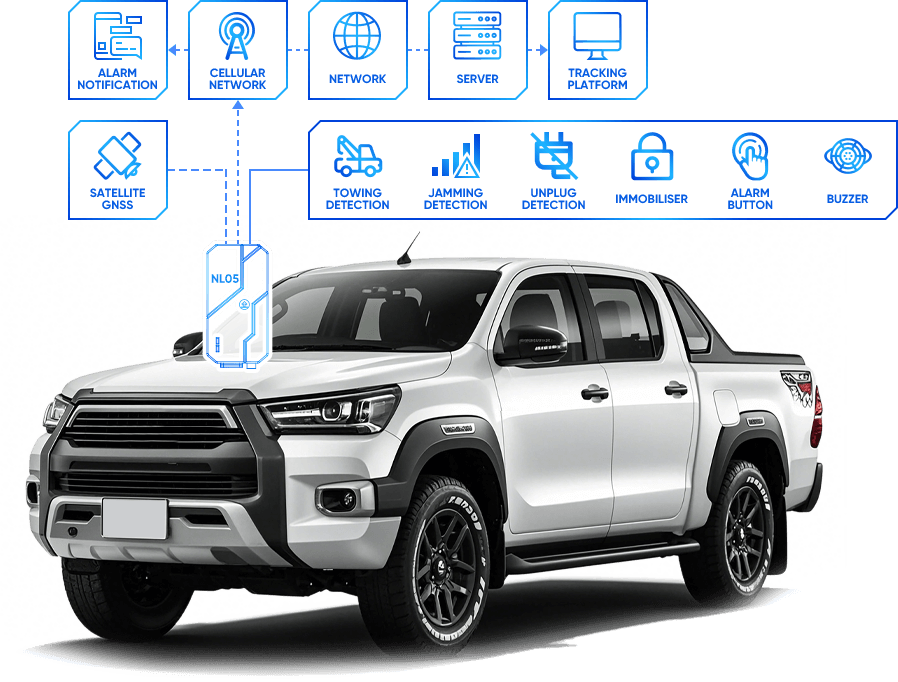

Pickup Truck System Diagram
Optional Peripherals
12V/24V Relay(immobilizer)
For shutting down the fuel pump or engine remotely.
iButton Reader
For driver authorization and attendance management.
Fuel Sensor
Real-time fuel data, high fuel alert, low fuel alert, fuel theft alert.
Buzzer
For alerting driver in case of overspeeding or other preset scenarios.
Panic Button
For emergence events.
Bluetooth Sensors
Temperature and humidity sensor, BLE Beacon, BLE fuel sensor.
Bluetooth Tag
For Driver ID and grant permission to start the ignition.
Bluetooth Relay
For shutting down the fuel pump or engine remotely.
Temperature Sensor
For detecting temperature value and trigger alerts for high/low temperature.
Axle Load Sensor
For monitoring cargo load weight and preventing axle overload.
