Model: NL-CA05
Side View Camera
CA05 is an outdoor camera for vehicle side view, it supports 1080P/720P resolution and built-in High-performance 2MP CMOS image sensor can provide excellent picture quality, smart IR CUT for Day&Night Mode.
Product Highlights
Sensor 1/2.9'' 2M pixel CMOS
Installation Location Side View
Resolution 1920H * 1080V
Without Audio
Electronic Shutter Auto
Color to Black Auto White Balance
Infrared LED Range 10 - 15m
4PIN Aviation Cable Exposed 500±30mm
Product Specifications
Dimension 76*92*64mm
Weight 250g
Signal Format PAL / NTSC
Minimum Illumination 0Lux (IR on)
Synchronization Internal sync.
S/N Ratio > 50dB
Lens 2.8mm M12 Lens
Viewing angle H=100° V=58° D=135°
Electronic Shutter Auto
White Balance Auto
Color to black Automatic external synchronization control
Gamma Ratio 0.45 (By Default)
Infrared LED Range 10 - 15m
Video Output AHD, 4PIN Aviation female connector
Power Supply DC12V ± 10%
Power Consumption(Max) 220mA ± 20mA
Operating Temperature -40°C ~ 70°C
Protection Level IP69K
Packing Details
Carton Size
350*350*460mm
Net Weight
Around 250g
Gross Weight
Around 295g
Packaging method
36pcs one carton
Product packaging size
110*110*110mm

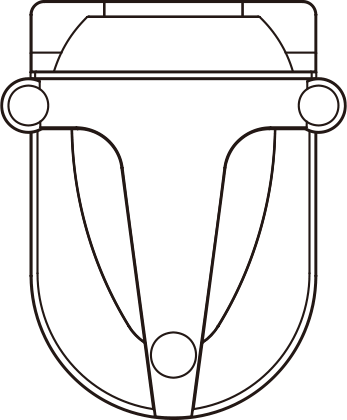

Product Diagram
