Model: NL-PC01
Passenger Counter
High accuracy people counting camera with built in AI algorithm for bus fleet management and station people statistics.
Product Highlights
Small Size, Easy For Installation
Power Consumption Less Than 3.5W
Deep Learning Algorithm Technology
Rich Interface Protocols, RS485, SDK and HTTP
Aluminum Alloy, Good Heat Dissipation
Integrate With Third Party Hardware
Operating Temperature -25℃ to 65℃
Results are not affected by hats, shadow or luggage
Network
10/100M self-adaption, 4G(Optional)
Positioning
Supported GPS + BD Dual positioning.
Database
Offline storage of more than 5 years.
Protocol
TCP, RS485, RS232, UDP, HTTP, RTSP, RTCP, DHCP, FTP, DDNS, PPPoE
OSD
Support customized overlay passenger flow data real-time screen output
Ai chip with NPU computing power
Neural network computing performance of 1.0Tops or above
Product Specifications
Linux Operating System
Processor Ai chip with NPU computing power
Storage 4G EMMC/ 1G DDR3
Dimension 135*62*38mm
Weight 450g
Case material Aluminum Alloy
Color White
Video stream Multiple Streams Different Bandwidth Mode
Video Compression H.265/H.264
Video Ecode & Decode 2688*1536, 720*480, 360*240 30fps
Operating Humidity 0-85%
Power Supply 9-60V/POE
Power Consumption(Max) Less than 4.5W
Operating Temperature -25-65°C
Capability
Width
Recognition width: 0.5-8 meters
Height
Installation hight: 1.8-10 meters
Recognition Time
30fps
AI Algorithm
Neural network computing performance of 1.0Tops or above
Other Parameters
Image Sensor
1/2.7'' IMX327, 2 million pixels, 1920*1080, Video output 200W or 130W pixels
Lens
1.8mm, 2.1mm, 2.8mm, 4mm, 6mm, 8mm Optional

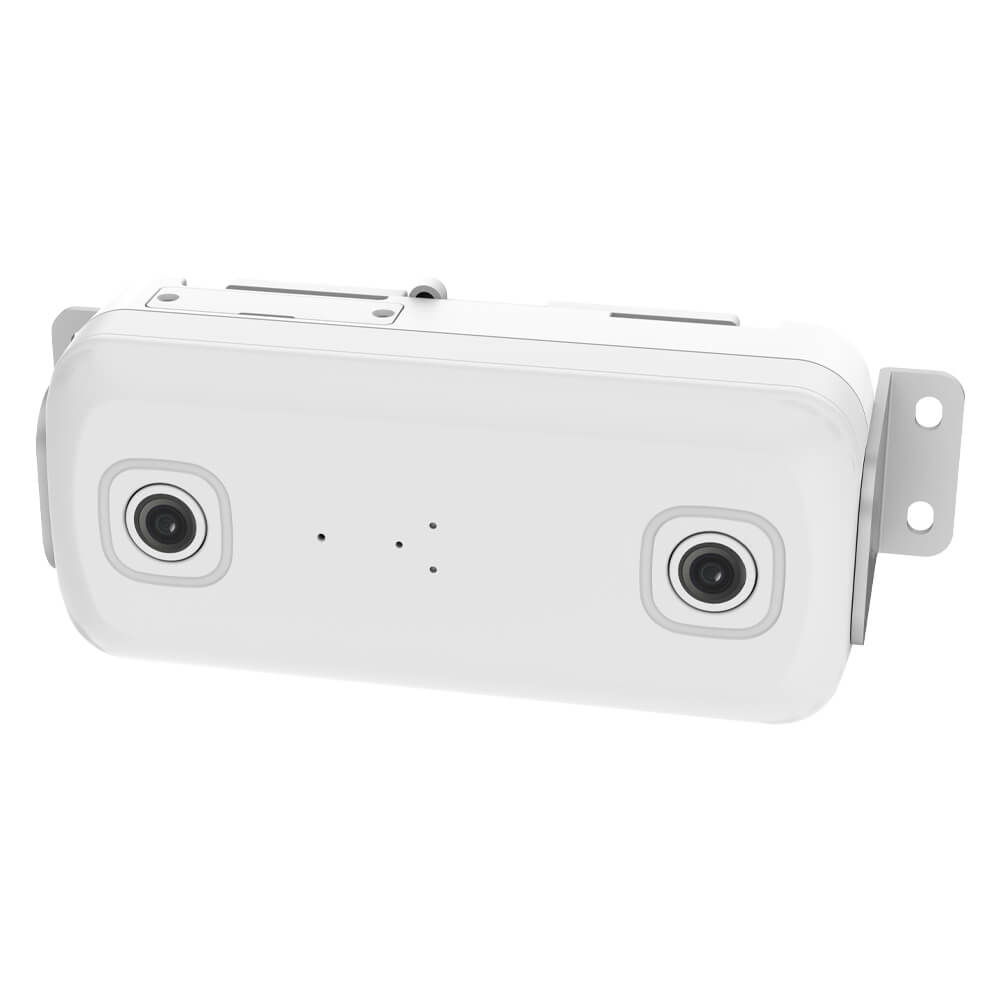

Product Diagram
