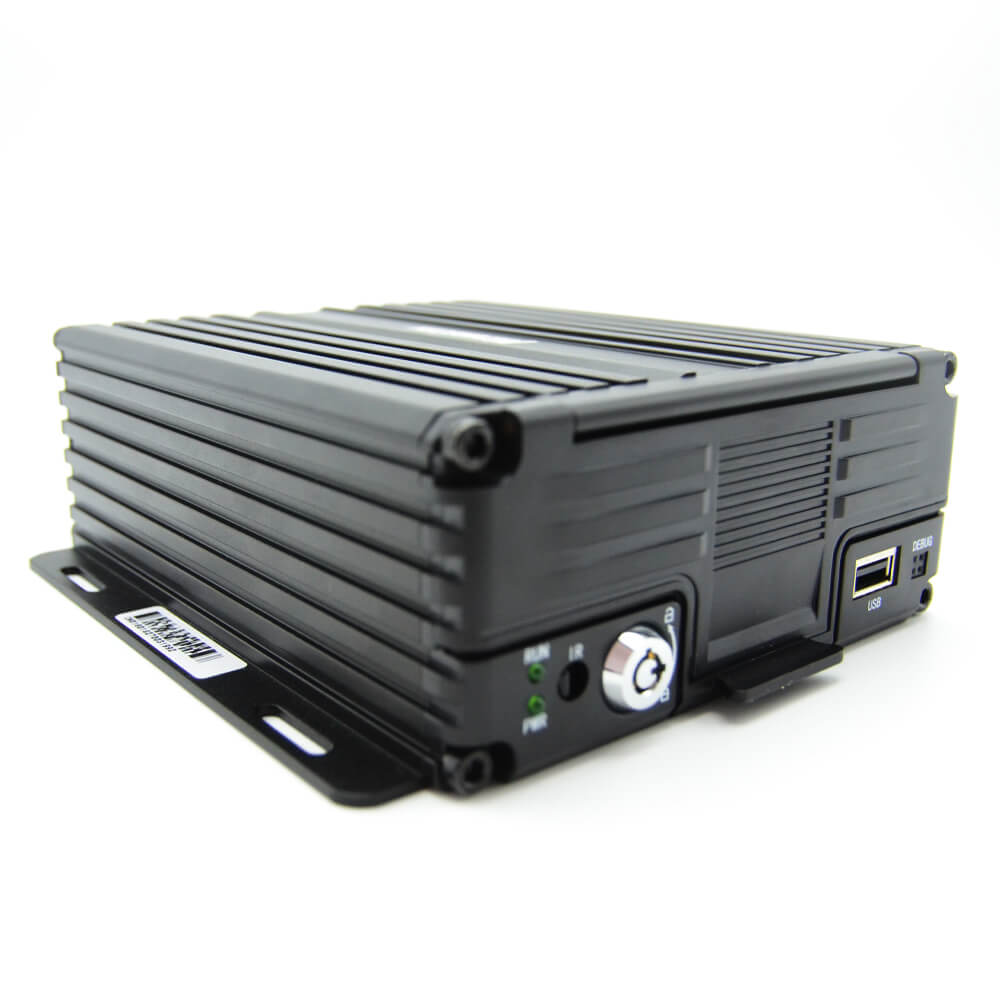

Model: NL10-04
4CH AI MDVR
NL10-04 is an AI Mobile DVR with supporting DMS, ADAS and BDS functions, it is designed for vehicle video surveillance solutions. With built-in high-speed AI processor, built-in Linux embedded operating system and high accuracy AI algorithm, NL10-04 MDVR has excellent performance on vehicle video monitoring and AI alarms. The product can support 4 CH 1080P camera, H265/H264 video code and VGA/CVBS video output, both HDD and SD card are compatible in this product, max storage is up to 2TB+256GB. 4G, WIFI and GNSS module are also built in our Mobile DVR NL10-04, it is ideal for visual fleet management solution.
Product Highlights
DMS, ADAS and BDS
4CH 1080P AHD/TVI/CVI/IPC
VGA + CVBS Video Output
H.265/H.264
1 x HDD(Max 2TB), 1 x SD Card slot(Max 256GB)
6 Axis Acceleration Sensor
9-36V Wide Range Power
4 x DIN, 2 x DOUT, 2 x RS232, 1 x RS48
Configurator
Supported Mouse and Mobile APP
Firmware Upgrade
Local USB Drive and SD card, Remote Upgrade via platform.
FMS Platforms
Supported CMSV6, Gurtam
GPRS Protocol
Supported JT808, JT1078
Driving Behaviors
Harsh acceleration, Harsh braking, Sharp cornering, Overspeed, Idling, ...
Powerful AI Alarm Function
Equipped with advanced AI technology, this device accurately recognizes various behaviors. It gently reminds you to rest when you're eye-closing or yawning. If you're distracted while driving, it immediately issues a warning to ensure safety. Detecting smoking or phone calling, it intelligently discourages these actions, maintaining a healthy driving environment. With a thoughtful seatbelt detection feature, it ensures safety belts are worn for every trip. AI empowerment makes driving more reassuring and life better.
Yawning
Eye Closing
Phone Calling
Driver Abnormal
Camera Covering
Smoking
Face Recognition
Distraction
Equipped with cutting-edge AI technology, it comprehensively safeguards your driving safety. Intelligent monitoring of vehicle distance to prevent rear end collisions, Early warning of collision risks ahead, allowing drivers to feel more at ease, Real time monitoring of lane departure to ensure driving trajectory, Accurately identify pedestrians and effectively avoid collision accidents.
Headway Monitoring Warning
Forward Collision Warning
Lane Departure Warning
Pedestrian Collision Warning
Blind Spot Detection Alarm
Product Specifications
Linux Operating System
Dimension 128.00*155.79*55.55mm
Weight 1610g
Video Input 4 Channels AHD/TVI/CVI/IPC/Analog video inputs
Video Output VGA & CVBS
Audio Input 4 Channels
Audio Output 2 analog output
Video Format PAL/NTSC
Video Compression H.264/H.265
Video Resolution 1080P/720P/960H/D1/CIF
Audio Formats G711A/G711U/G726
Storage HDD & SD
Video Local Backup SD cards and USB drives
Upgrade Mode Local and remote
LED Indicator Power and Run
GNSS GPS/BD/GLONASS
WIFI 2.4GHz, Optional AP and Station mode
Power Output 5V 500mA
Power Consumption Operating power: AVG 4.8W Static power: 2.4mA
Frequency Bands
EU Version
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
LTE-TDD
B38, B40, B41
Frequency Bands
LA Version
WCDMA
B1, B2, B4, B5, B8
GSM/EDGE
B2, B3, B5, B8
LTE-FDD
B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD
B40
Frequency Bands
CN Version
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B8
LTE-TDD
B34, B38, B39, B40, B41
I/O Interfaces
USB
1
Power interface
Power/Ignition signal
Alarm Input
4 x Digital Input
Alarm Output
2 x Output
The speed pulse
1
RS232
2
RS485
1
Microphone & Speaker
1
IPC/LAN
Optional
Hard disk interface
1 x 2.5 inch HDD
SD card
1
Disk lock
1
Product Diagram
Applications
Mining Truck System Diagram
Driver Management by Face Recognition or RFID Rearder.
Driver Fatigue Monitoring and provide timely warning.
Optimize fleet operations and reduce maintenance cost.
Effective Blind Spot Detection and Radar Detection.
Save critical video footages for evidence query.
Instant visual & audio warning to reduce accident rates.
Forklift System Diagram
Reduce forklift accident due to blind spot.
Driver Fatigue Monitoring and provide timely warning.
360 vision aid to avoid collision incidents.
Aid in loading/unloading pallet with 7inch IP67 monitor.
Reduce the damaging on the valuable stocks and goods.
Instant visual & audio warning to reduce accident rate.
Heavy Truck System Diagram
Driver Management by Face Recognition or RFID Rearder.
Driver Behaviors Monitoring and provide timely warning.
Streamline logistics operations and ensure cargo safety.
Manage Fuel level consumption more efficiently.
Critical Video Footages for insurance claim and evidence.
Deliver cargo on time and boost company image.
Standard Peripherals
Power Cable
For connecting with external power supply.
IO Cable
For general purpose inputs and outputs.
GPS Antenna
For receiving GNSS signal to get positioning.
GSM Antenna
For receiving GSM network to transmit data to server.
DMS Camera
For detecting driver behaviors and recording event-based video clips and snapshots.
ADAS Camera
For Advanced Driver Assistance Systems.
Disk Lock Key
For locking SSD/HDD safely.
Speaker
For warning drivers of triggering events.
Optional Peripherals
AHD Camera
For video monitoring and taking snapshots.
Ultrasonic Fuel Sensor
For fuel management, monitoring and fuel theft alert.
Relay
For switching off the engine on demand.
Buzzer
For alerting driver in case of overspeeding or other preset scenarios.
RFID Reader
For driver authorization and attendance management.
Rotating Magnetic Sensor
For monitoring the rotation direction and speed of the ReadyMix drum.
Hotspot Tool
For configuring device settings and parameters via APP.
Passenger Counter
Passenger flow counting camera for passenger flow statistics analysis.
