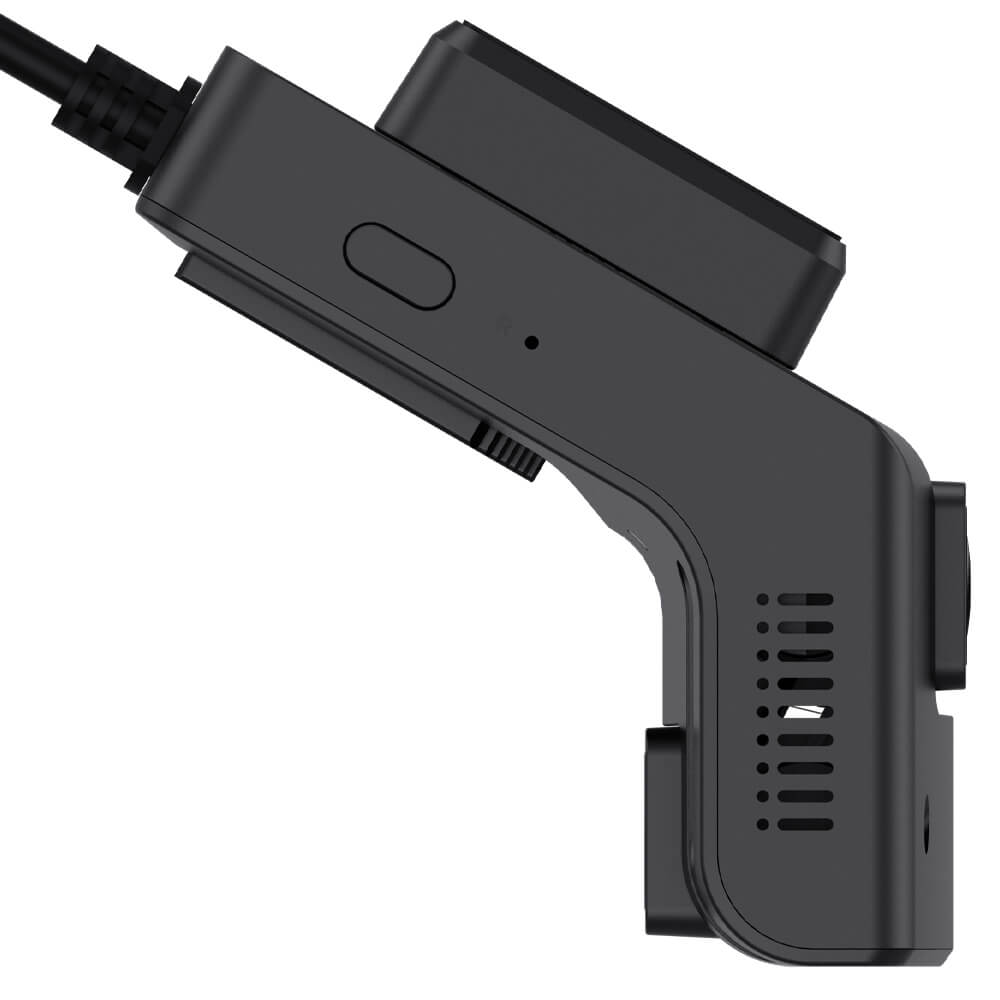

Model: NL13
Affordable AI Dashcam
NL13 is a New generation AI Dashcam with built-in Front and Rear camera. It supports self-calibration for DMS and ADAS function. It is very easy and convenient for installation, reducing the time and labor cost. Based on advanced deep learning technology, active safety features such as Advanced Driver Assistance Systems (ADAS), Driver Monitoring Systems (DMS), can be applied to complex driving scenarios to enhance the safety and efficiency of driving and improving the overall user experience. This product is applicable to different types of industries and vehicles and it has been already depolyed to many projects worldwide.
Product Highlights
All-In-One Extended to max 3CH
Advance AI DMS + ADAS
Remote Video Audio Monitoring
Auto Calibration Adaptive Algorithms
Compact Size Light Weight
Quick Installation Easy for Configuration
Cost-Effective High Stability
Two-way GSM Call
Configurator
Supported Mobile APP, SMS Commands
Firmware Upgrade
Local: TF Card, Remote OTA via platform.
FMS Platforms
Supported CMSV6, Wialon, Uffizio
GPRS Protocol
Supported JT808, JT1078
AI Alarms
Yawning, Eye Closing, Distraction, Smoking, Phone Calling, ...
Powerful AI Alarm Function
Equipped with advanced AI technology, this device accurately recognizes various behaviors. It gently reminds you to rest when you're eye-closing or yawning. If you're distracted while driving, it immediately issues a warning to ensure safety. Detecting smoking or phone calling, it intelligently discourages these actions, maintaining a healthy driving environment. With a thoughtful seatbelt detection feature, it ensures safety belts are worn for every trip. AI empowerment makes driving more reassuring and life better.
Yawning
Eye Closing
Phone Calling
Smoking
Distraction
Seatbelt
Equipped with cutting-edge AI technology, it comprehensively safeguards your driving safety. Intelligent monitoring of vehicle distance to prevent rear end collisions, Early warning of collision risks ahead, allowing drivers to feel more at ease, Real time monitoring of lane departure to ensure driving trajectory, Accurately identify pedestrians and effectively avoid collision accidents.
Headway Monitoring Warning
Forward Collision Warning
Lane Departure Warning
Virtual bumper
Front Vehicle Start
Product Specifications
Linux Operating System
Dimension 116 x 66 x 38mm
Weight 198g
Power Supply DC 12V-24V
Working Temperature -20~70℃
4G Quectel EC200A-AU/EU, EC25-AFX
GNSS GPS + BD
WIFI AP mode for APP configuration, 2.4Ghz
LTE Antenna Built-in 4G Antenna
GPS Antenna External GPS Antenna
Video formats PAL / NTSC
Video compression H.264 / H.265
Video Resolution 1080P / 720P / D1 / CIF
Audio formats G.711A
Storage Capacity 1 x 256GB TF card(Class10)
External Cameras Extended to 1 x AHD Cameras(720P)
Indicators 4 LED Indicators (Working status, recording, networking, login)
Speaker and Microphone Built-in
G-Sensor 3-axis G-sensor
4G
Quectel EC200A-EU
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
LTE-TDD
B38, B40, B41
4G
Quectel EC200A-AU
WCDMA
B1, B2, B4, B5, B8
GSM/EDGE
B2, B3, B5, B8
LTE-FDD
B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD
B40
4G
Quectel EC25-AFX
WCDMA
B2, B4, B5
LTE-FDD
B2, B4, B5, B12, B13, B14, B66, B71
Front View Lens(ADAS)
Sensor Type
1/2.9'', 2 million pixel CMOS sensor
FOV
D:125° H:105° V:58°
Resolution
1920*1080
Frame rate
1080P 30fps
In-cab Lens
Sensor Type
1 / 3'', 2 million pixel CMOS sensor
FOV
D:120° H:100° V:45°
Resolution
1920*1080
Frame rate
1080P 30fps
GPIO & Interfaces
Alarm Inputs
4 (ACC, Panic, left and right turn)
RS232
1
TF Card
1
Sim Card
1
Product Diagram
Applications
Delivery Van System Diagram
Monitors vehicle locations to improve route planning and delivery efficiency.
Identifies delays and suggests faster alternatives for timely deliveries.
Detects unsafe behaviors and provides instant feedback to ensure safe driving.
Records events for resolving disputes or insurance claims.
Confirms safe package handling and prevents claims of lost or damaged goods.
Mini Bus System Diagram
Provide useful information for Mini Bus fleet dispatch.
Driver Fatigue Monitoring and provide timely warning.
Save critical Video footages for evidence query.
Improve safety and security for minibus, and passengers.
Driver attendance is managed and KPI assessment is accessible with reports.
Standard Peripherals
Power Cable
For connecting with external power supply.
Panic Button
For emergence events.
GPS Antenna
For receiving GNSS signal to get positioning.
SIM Card Pin
For installing SIM Card.
Optional Peripherals
Extension Cable
For power cable extension to facilitate installation.
AHD Camera
For video monitoring and taking snapshots.
