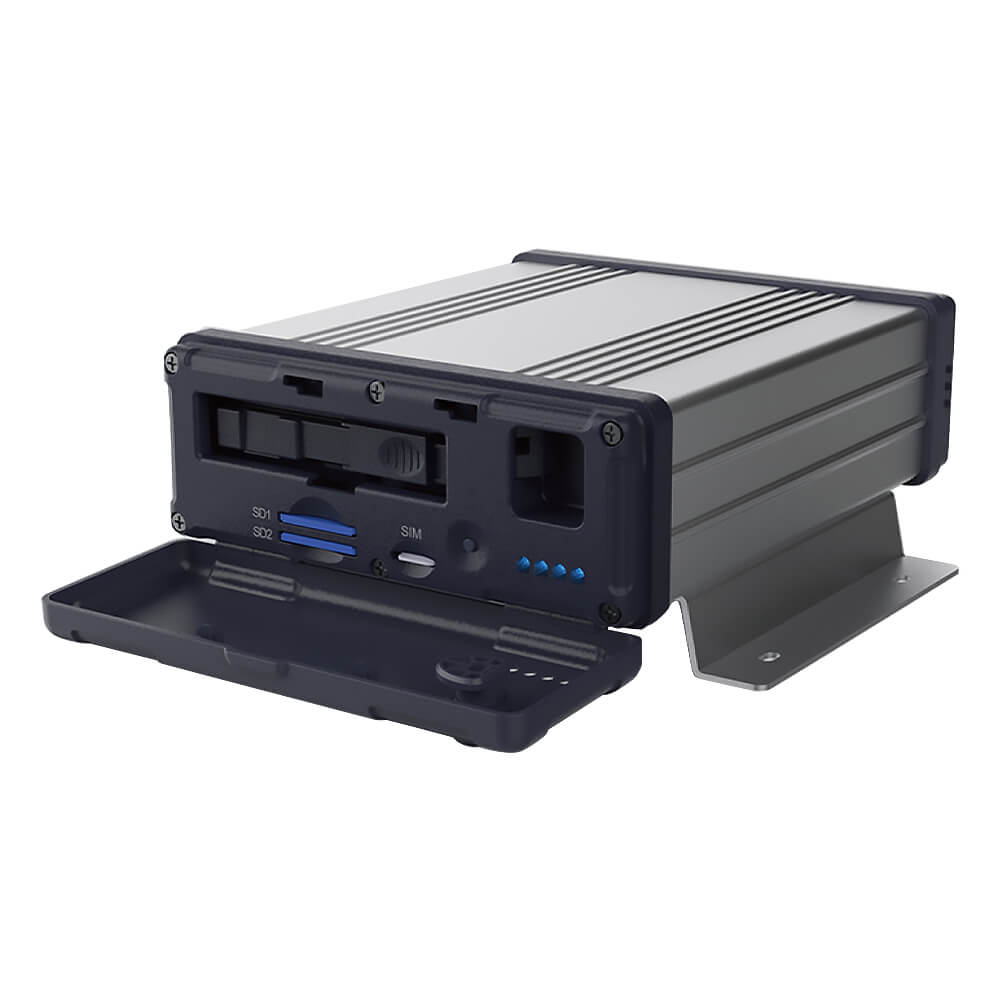

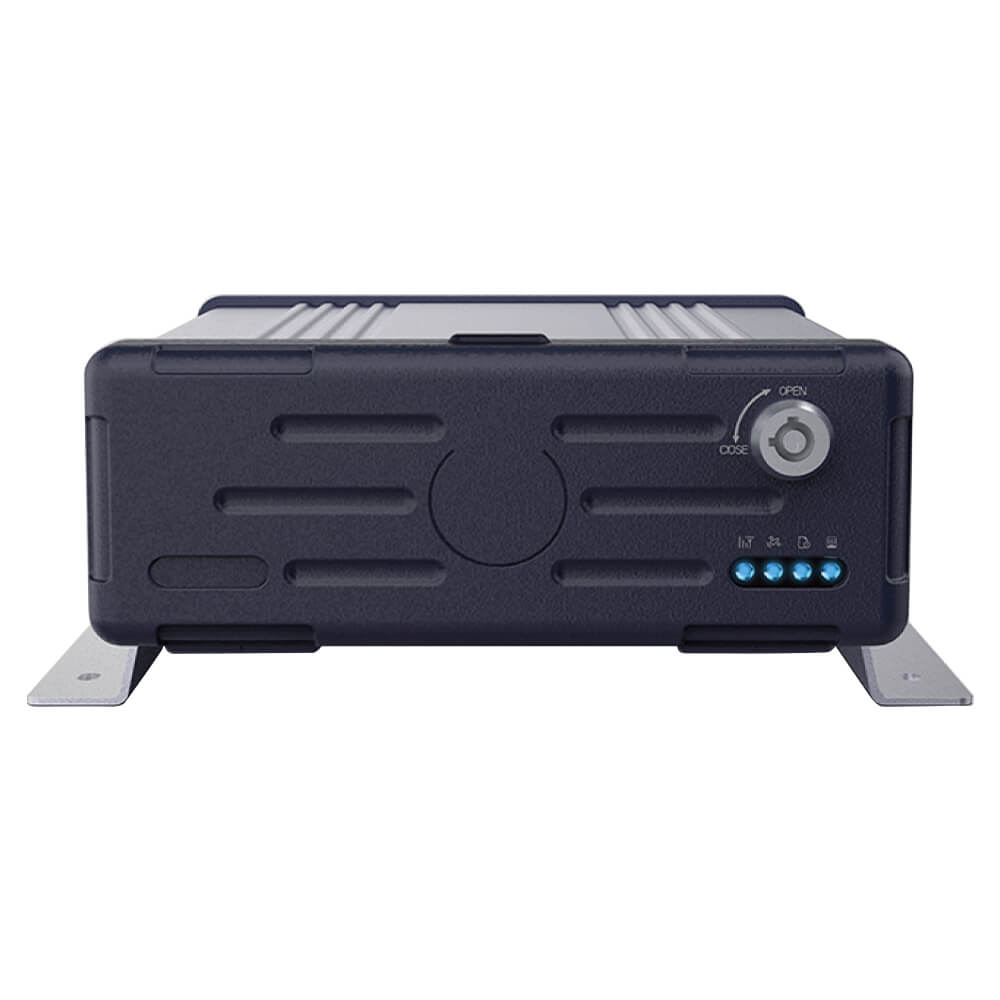

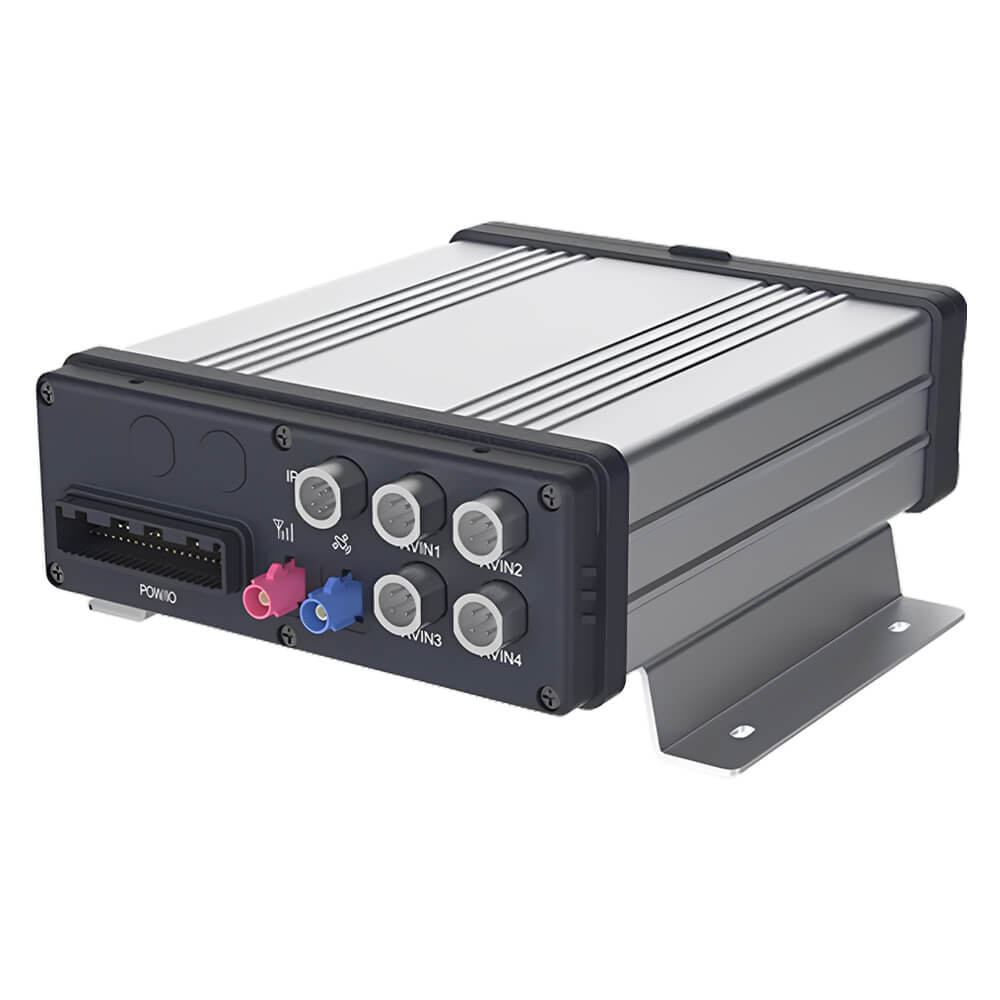

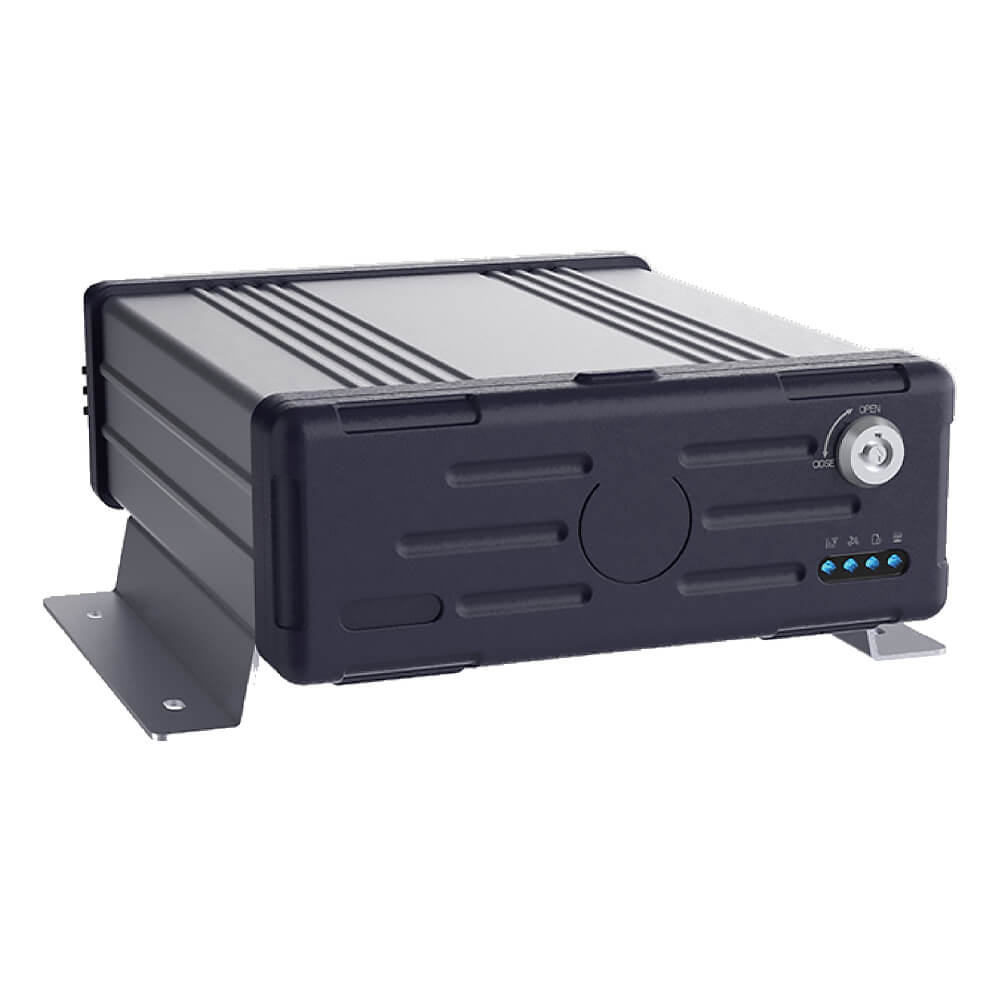

Model: NL30
6CH AI MDVR
NL30, a cutting-edge high-definition intelligent Al mobile DVR. Built with an industri-al-grade core high-speed processing chip, it combines global 4G wireless transmis-sion, WIFI communication, DVR functionality, and BDS/GPS dual-mode positioning. NL30 is designed to provide comprehensive vehicle driving records and video surveil-lance capabilities. Equipped with powerful Al computing power, the NL30 supports ad-vanced monitoring features such as ADAS (Advanced Driving Assistance System), BSD(Blind Spot Detection), DSM (Driver Status Monitor), passenger status, carriage loading, and cargo condition. This ensures a high level of intelligent monitoring and enhances overall safety.
Product Highlights
DMS, ADAS and BDS
6CH 1080P AHD
VGA + CVBS Video Output
H.265/H.264
Solid State Drive(Max 2TB)
360 Degrees Surround View System
9-36V Wide Range Power
Blind Spot Detection
Configurator
Supported Mobile APP/Web
Firmware Upgrade
Local USB Drive and SD card, Remote Upgrade via platform.
FMS Platforms
Supported CMSV6, Wialon, Uffizio
GPRS Protocol
Supported JT808, JT1078
Driving Behaviors
Harsh acceleration, Harsh braking, Sharp cornering, Overspeed, Idling, ...
Powerful AI Alarm Function
Equipped with advanced AI technology, this device accurately recognizes various behaviors. It gently reminds you to rest when you're eye-closing or yawning. If you're distracted while driving, it immediately issues a warning to ensure safety. Detecting smoking or phone calling, it intelligently discourages these actions, maintaining a healthy driving environment. With a thoughtful seatbelt detection feature, it ensures safety belts are worn for every trip. AI empowerment makes driving more reassuring and life better.
Yawning
Eye Closing
Phone Calling
Camera Covering
Smoking
Face Recognition
Distraction
Seatbelt
Equipped with cutting-edge AI technology, it comprehensively safeguards your driving safety. Intelligent monitoring of vehicle distance to prevent rear end collisions, Early warning of collision risks ahead, allowing drivers to feel more at ease, Real time monitoring of lane departure to ensure driving trajectory, Accurately identify pedestrians and effectively avoid collision accidents.
Headway Monitoring Warning
Forward Collision Warning
Lane Departure Warning
Pedestrian Collision Warning
Blind Spot Detection Alarm
Product Specifications
Linux Operating System
Dimension 145*58*193mm
Weight --
Video Input 6 Channels AHD 1080P + 1 IPC
Video Output VGA & CVBS
Audio Input 2 Channels, 1 Microphone
Audio Output External Speaker
Video Format PAL/NTSC
Video Compression H.264/H.265
Video Resolution 1080P/720P/D1/CIF
Audio Formats G711A/G726
Storage Max 2TB Solid State Drive(SSD) 2 x SD cards(512GB)
Video Local Backup SD cards
Upgrade Mode Local and remote
LED Indicator 4 Indicators
GNSS GPS/Beidou
WIFI 2.4GHz, Optional
Power Consumption Operating power: AVG <15W Static power: <2mA
Working Temperature -30℃~70℃
Working Voltage DC 9V~32V
G-Sensor Supported
Frequency Bands
EC200A-EU
WCDMA
B1, B5, B8
GSM/EDGE
B3, B8
LTE-FDD
B1, B3, B5, B7, B8, B20, B28
LTE-TDD
B38, B40, B41
Frequency Bands
EC200A-AU
WCDMA
B1, B2, B4, B5, B8
GSM/EDGE
B2, B3, B5, B8
LTE-FDD
B1, B3, B5, B7, B8, B20, B28, B66
LTE-TDD
B40
I/O Interfaces
CAN
1
G-Sensor
6-Axis G-Sensor
Alarm Input
5
Alarm Output
1
The speed pulse
1
RS232
2
RS485
1
Microphone & Speaker
Supported
Maintenance Platform
Supported
Disk lock
1
Product Diagram
Applications

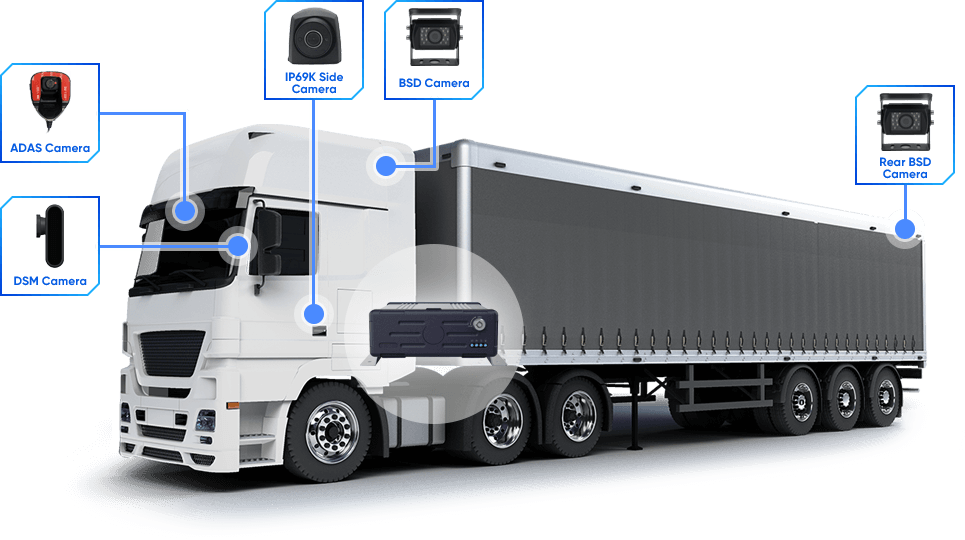

Heavy Truck System Diagram
Driver Management by Face Recognition or RFID Rearder.
Driver Behaviors Monitoring and provide timely warning.
Streamline logistics operations and ensure cargo safety.
Manage Fuel level consumption more efficiently.
Critical Video Footages for insurance claim and evidence.
Deliver cargo on time and boost company image.

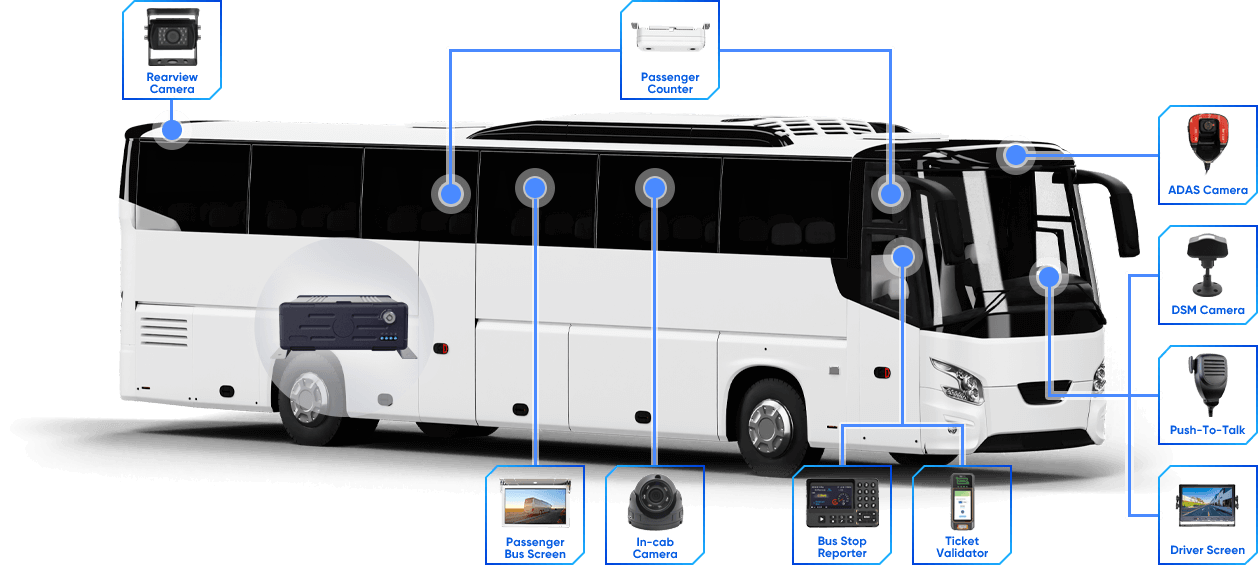

Intercity Bus System Diagram
Provide useful information for Bus fleet dispatch.
Driver Fatigue Monitoring and provide timely warning.
Remind passengers when bus approaching the stop.
Save critical Video footages for evidence query.
Efficient Ticketing System to improve city image.
Improve safety and security for bus, and passengers.

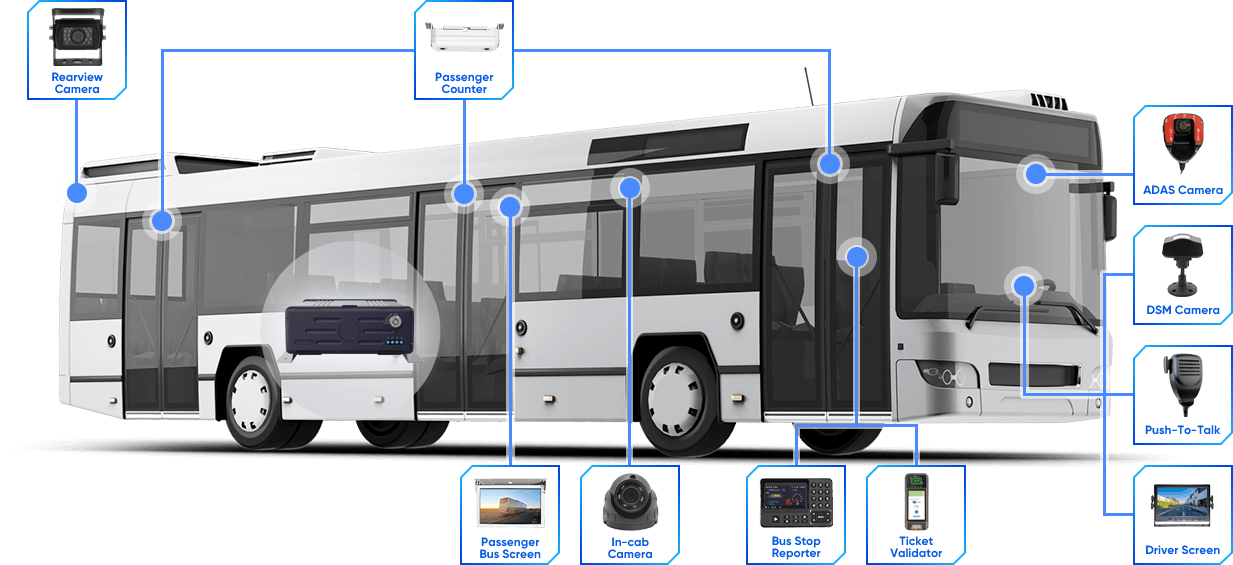

Public Bus System Diagram
Provide useful information for Bus fleet dispatch.
Driver Fatigue Monitoring and provide timely warning.
Remind passengers when bus approaching the stop.
Save critical Video footages for evidence query.
Efficient Ticketing System to improve city image.
Improve safety and security for bus, and passengers.
Standard Peripherals
Power Cable
For connecting with external power supply.
IO Cable
For general purpose inputs and outputs.
GPS Antenna
For receiving GNSS signal to get positioning.
GSM Antenna
For receiving GSM network to transmit data to server.
Disk Lock Key
For locking SSD/HDD safely.
Optional Peripherals
DMS Camera
For detecting driver behaviors and recording event-based video clips and snapshots.
ADAS Camera
For Advanced Driver Assistance Systems.
AHD Camera
For video monitoring and taking snapshots.
Ultrasonic Fuel Sensor
For fuel management, monitoring and fuel theft alert.
Relay
For switching off the engine on demand.
Buzzer
For alerting driver in case of overspeeding or other preset scenarios.
RFID Reader
For driver authorization and attendance management.
